Geo Scheduling
Scheduled Events can be configured to be location aware with locations displayed on a map view.
- Geo Location Scheduling
- Available from CMS: 2.3
-
R206 -
-
-
R253 -
-
- Geo Location Scheduling 2.3
- Cloud
-
R206 -
-
-
R253 -
-
Define Location
-
From the Schedule Event form, click on the Geo Location tab.
-
Tick in the Geo Schedule box to enable and define the location.
On opening, the map will default to what is entered for DEFAULT_LAT and DEFAULT_LONG in CMS Settings, under the Displays tab.
- Use the buttons in the top left of the map to Zoom in and out.

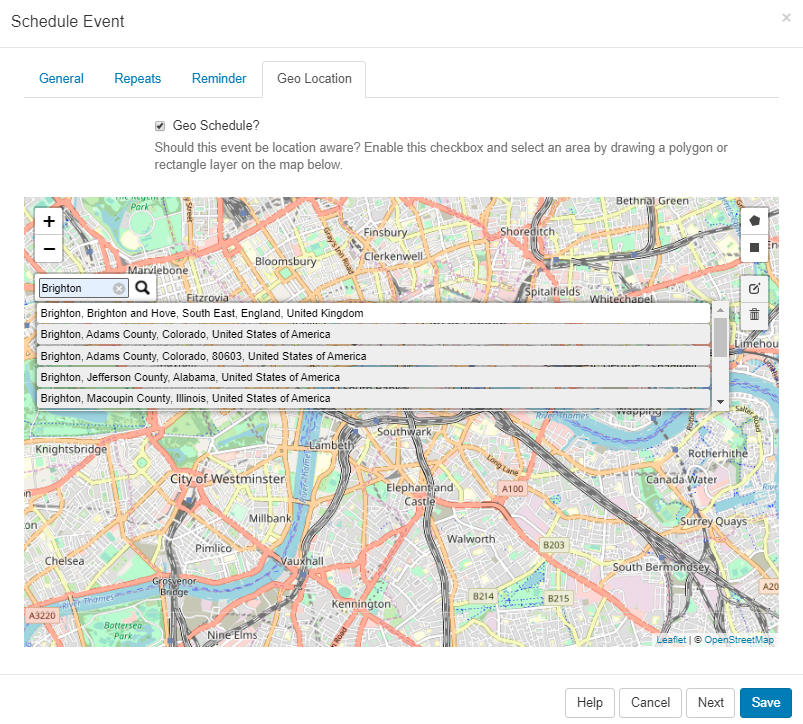

- Click on the search icon to enter details for a particular area.

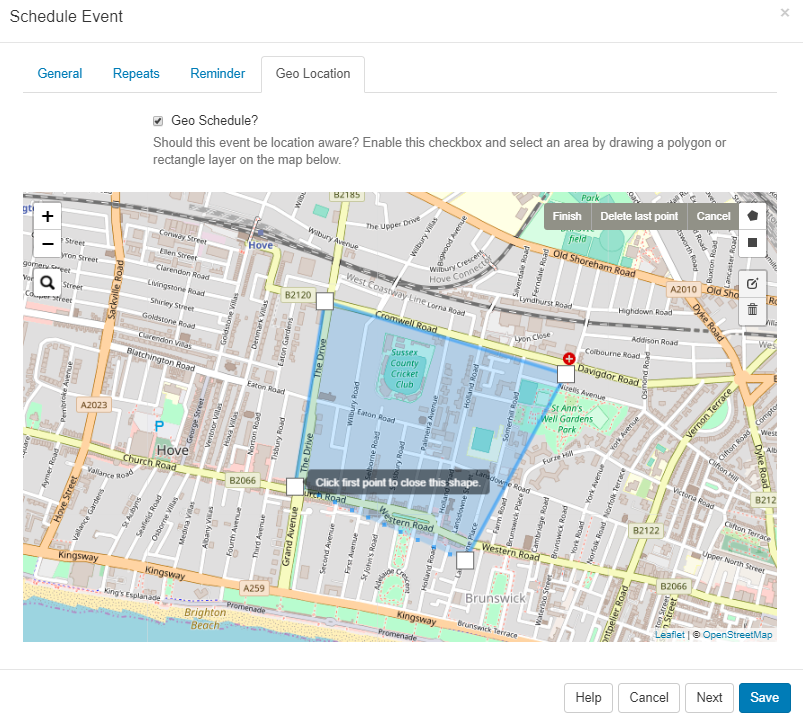

- Define an area by drawing a Polygon or Rectangle layer on the map.

Edit

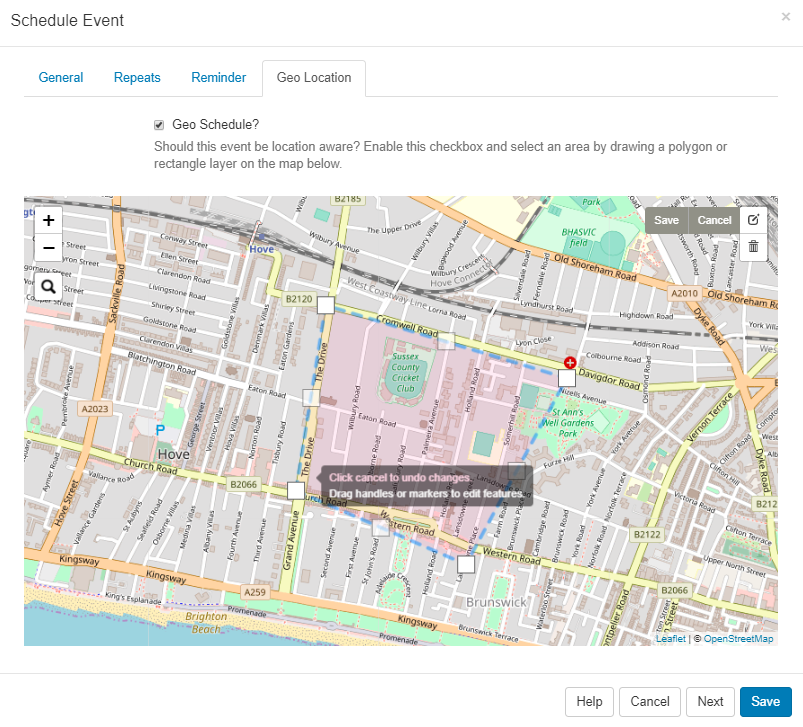

- Once an area has been defined, click on the edit icon to to drag the markers to make adjustments to the existing Layer.
- Click on the grey Save button located here to ensure that edits are saved.

Delete
- To remove the area, use the bin icon and click into the area to delete
- Click the grey Save button to save the removal of the layer.
